Visualization of c = ω/β - Contributed by Akshat Singhal


cos(ωt-βz) is the term representing phase of a transverse electromagnetic wave in free space, where,   ω is angular frequency (rad/s),   β is phase constant (rad/m)

Note: Here we are using the convention that wave propagation is in z-direction.

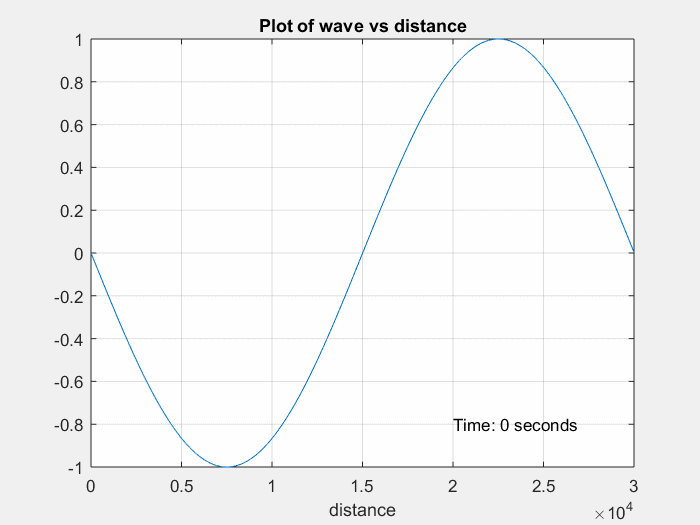

We can see in the visualization that for the variation of time, in one time period the wave moves by one unit lambda (2π radians in space) and at a given point in space the point travels 2π radians in time.

We can also see that the equation can be broken down into a simpler basic equation using the fact that ω = 2πf and β = 2π/λ

c = ω/β = 2πf/(2π/λ) = (2π/T)/(2π/λ)
Hence, c = fλ
