H/W 5:  STUDY OF 8251 USART

Introduction:

8251 popularly known as USART (Universal Synchronous Asynchronous Receiver and Transmitter) is designed for serial data communication. It can be interfaced to uP on one side and Modem on other side which in turn is connected to telephone lines.

Sr.No.  Register  Address for Periware  Address for Classik
 1.  Command,Mode and Status  F1  29
 2.  Data  F0  28

    A toggle switch is provided to execute the programs in ' free run ' or 'single step' mode. The single step key has double function. It single steps the kits software and also provides clock pulses to Transmitter and Receiver. 1 bit data is shifted out or in with each press of the 'single step’ key.

Problems:

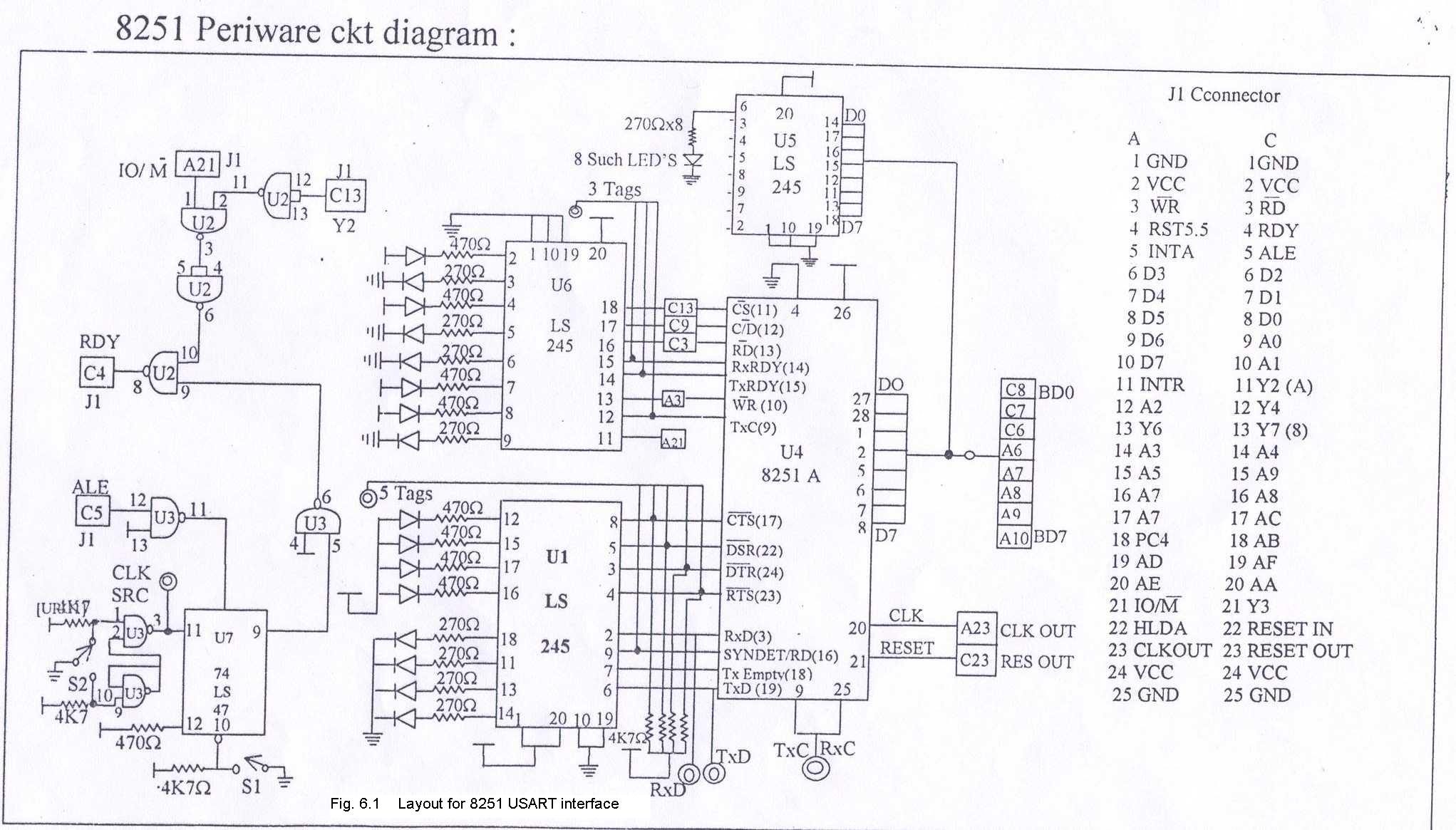

  1. Study the circuit of the periware provided in the manual and observe the placement of various tags and LEDs.
  1. Execute the programs for Asynchronous and Synchronous modes given in the manual and verify the tables. Observe how various signals are generated during single stepping.
  1. Write a program to transmit one byte between two kits  in Asynchronous mode using add-on (Periware) kits.

    4.   Repeat Part 3 with the kits connected using RS232 connector on the kits ( Classik).
