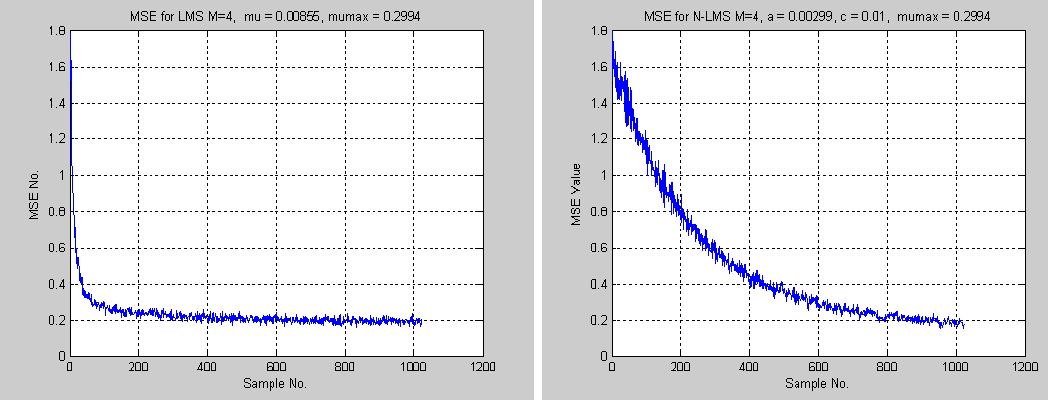

Figure 7  Mean Square Error plots for LMS and N-LMS

1. MSE Graph for LMS and NLMS for mumax =0.4045 , mu=0.0115, a=0.00337, c=0.5

2. MSE Graph for LMS and NLMS for mumax =0.4107 , mu=0.01173, a=0.00273, c=2

Observations

   In LMS Large mean square error with compared to NLMS but fast convergence.
