EE206 Digital Circuits II Sem 2005-06: End-Semester Examination

Comments and Remarks (periodically updated)

Hints, Solutions and Notes (sporadically updated)

(Please click on the images below to see them clearly)

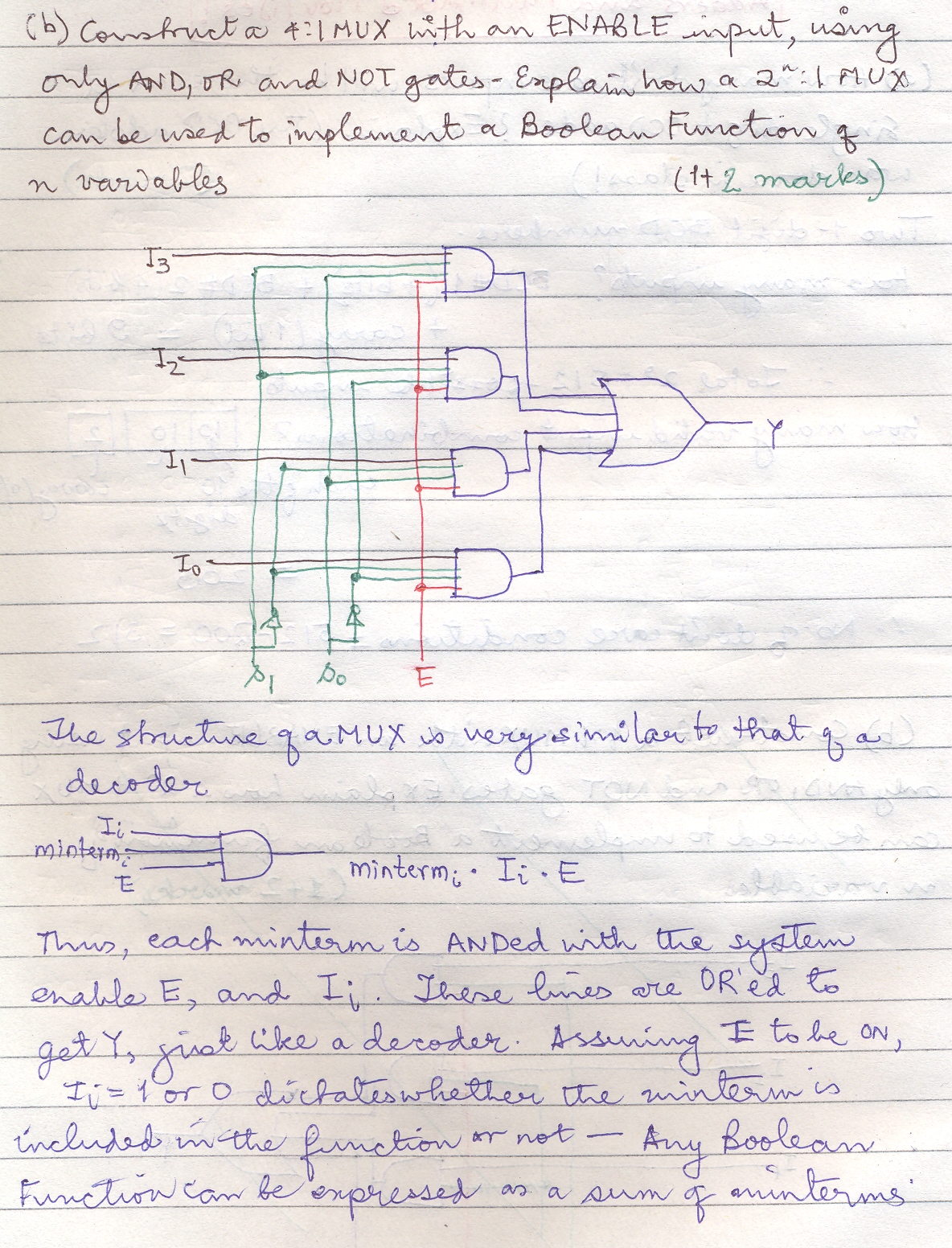

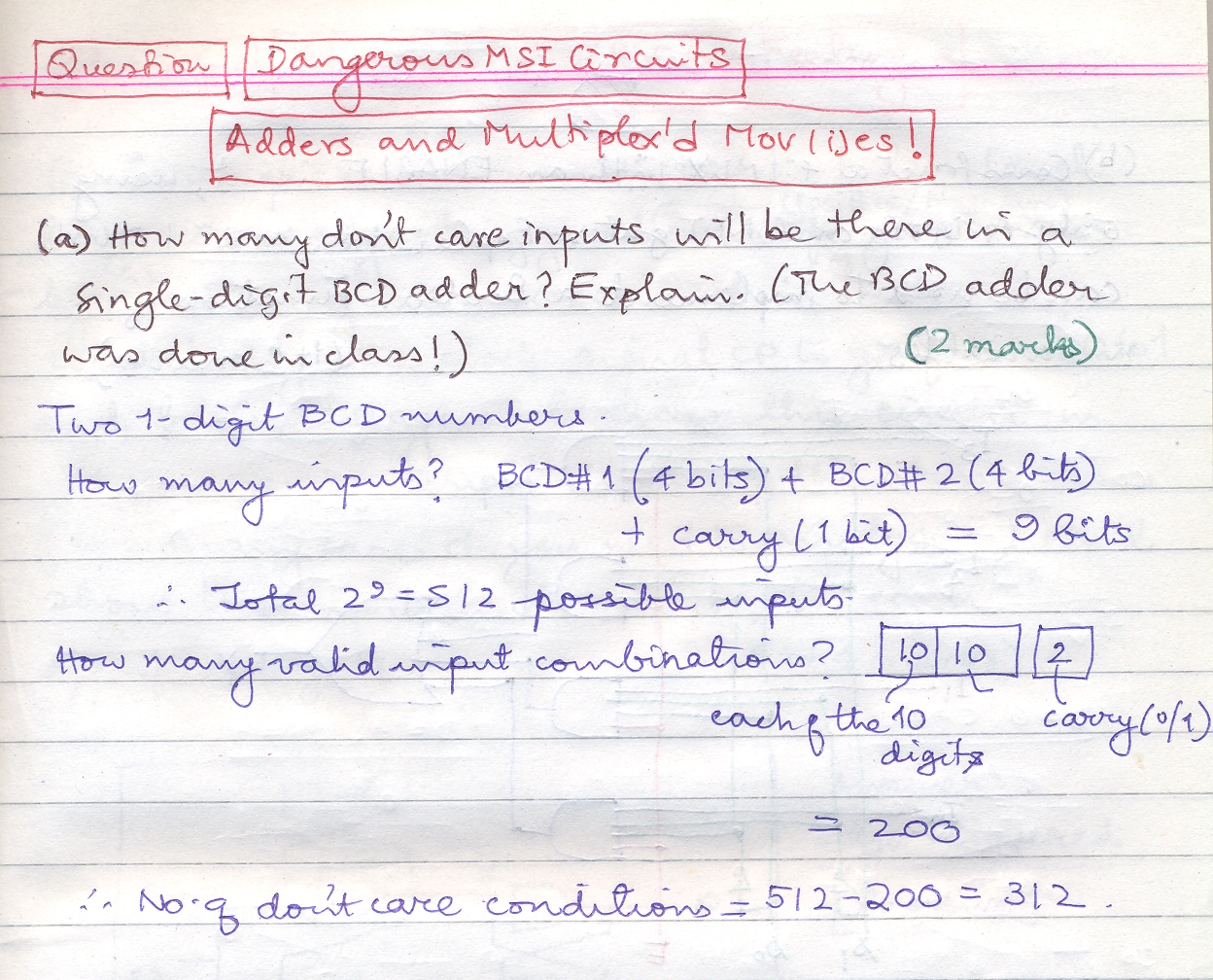

Question 1:

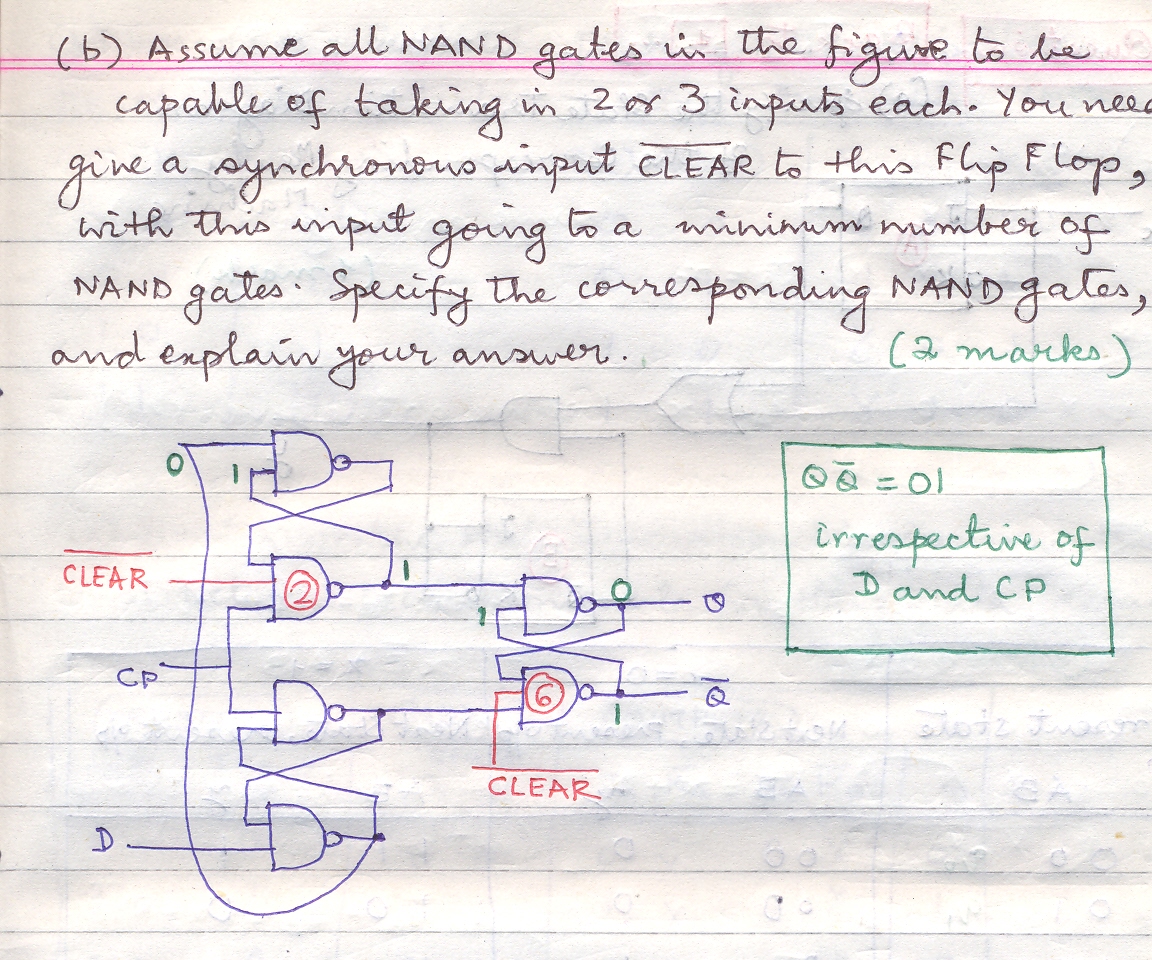

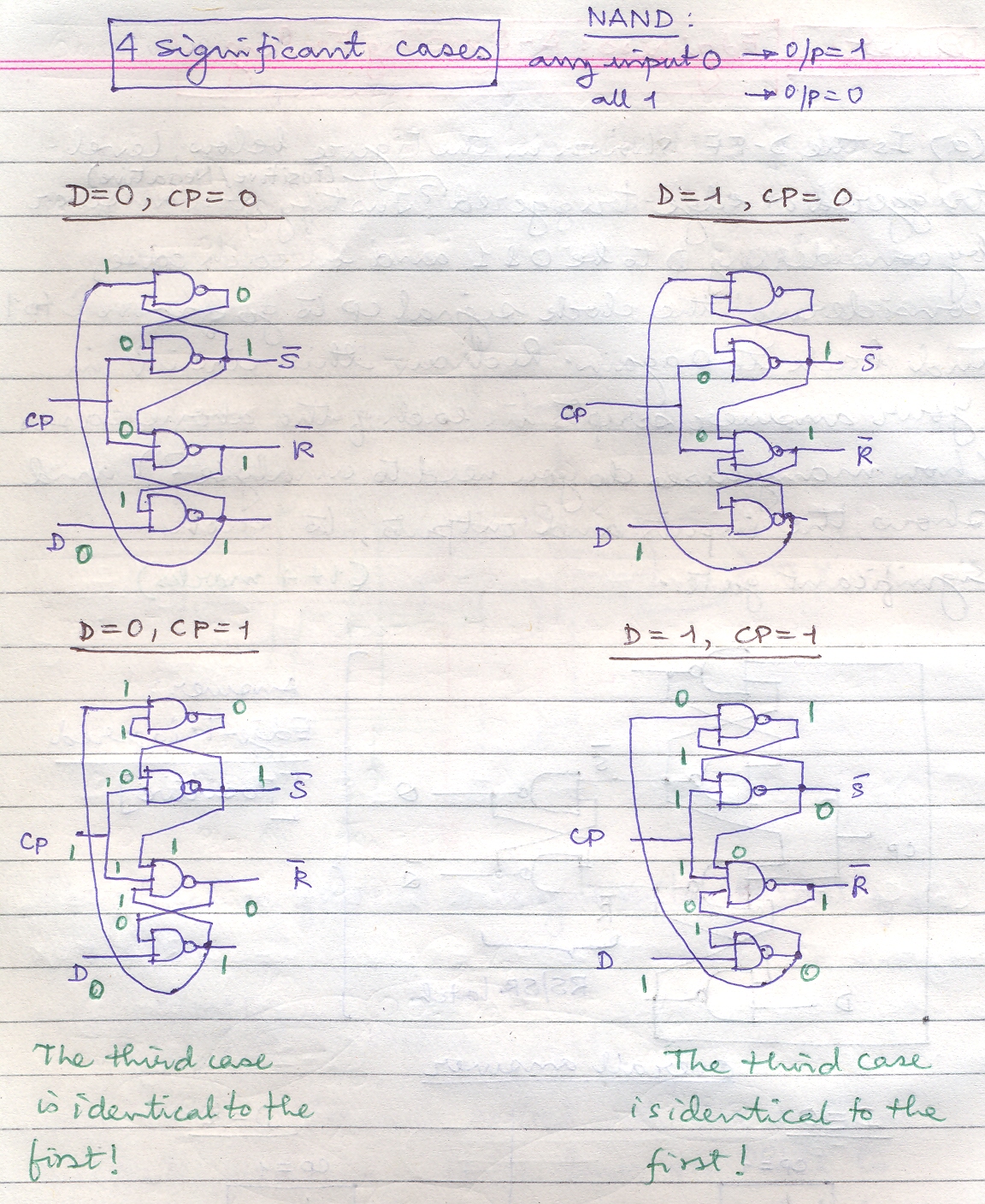

Question 2:

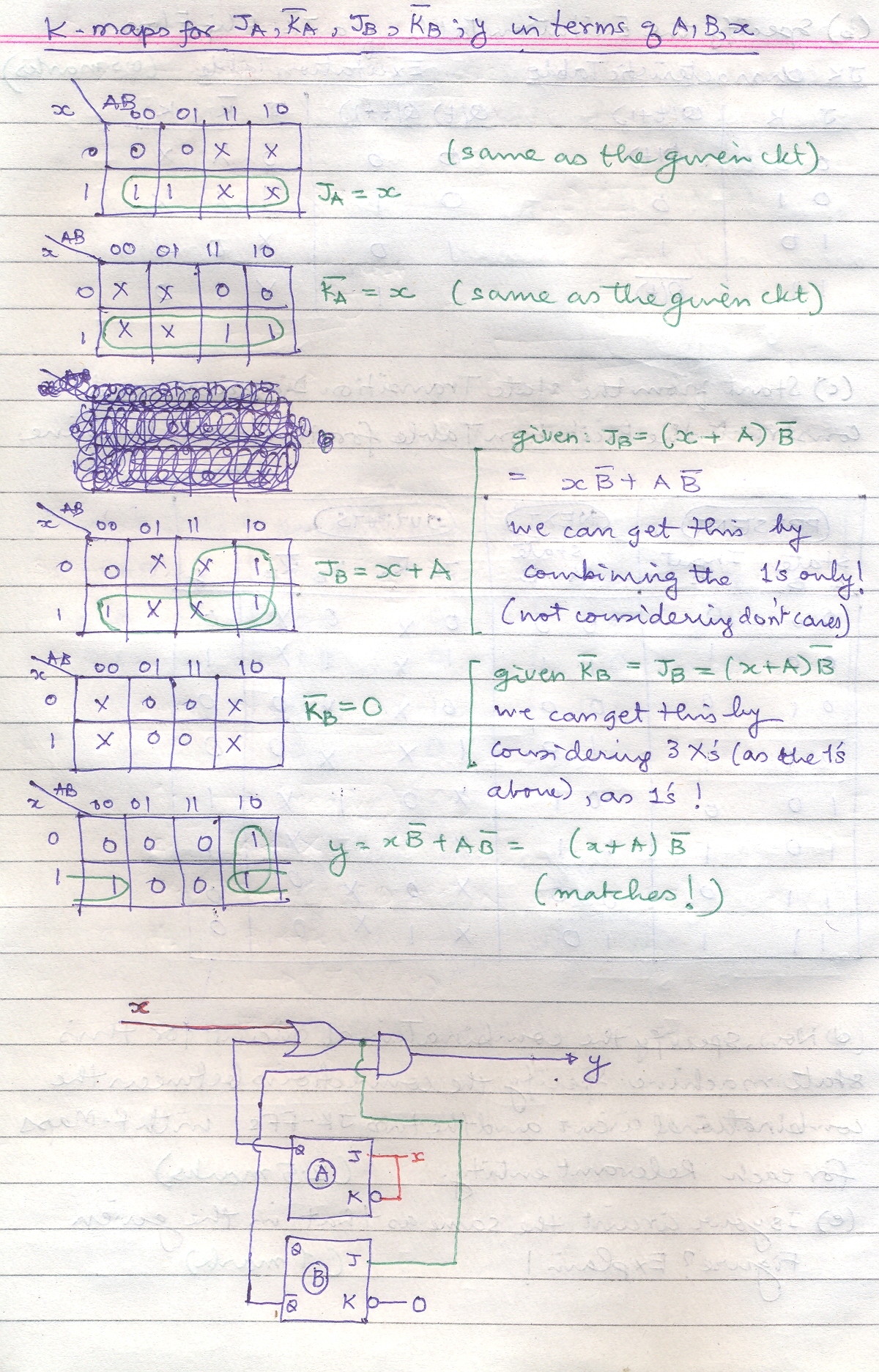

Question 3:

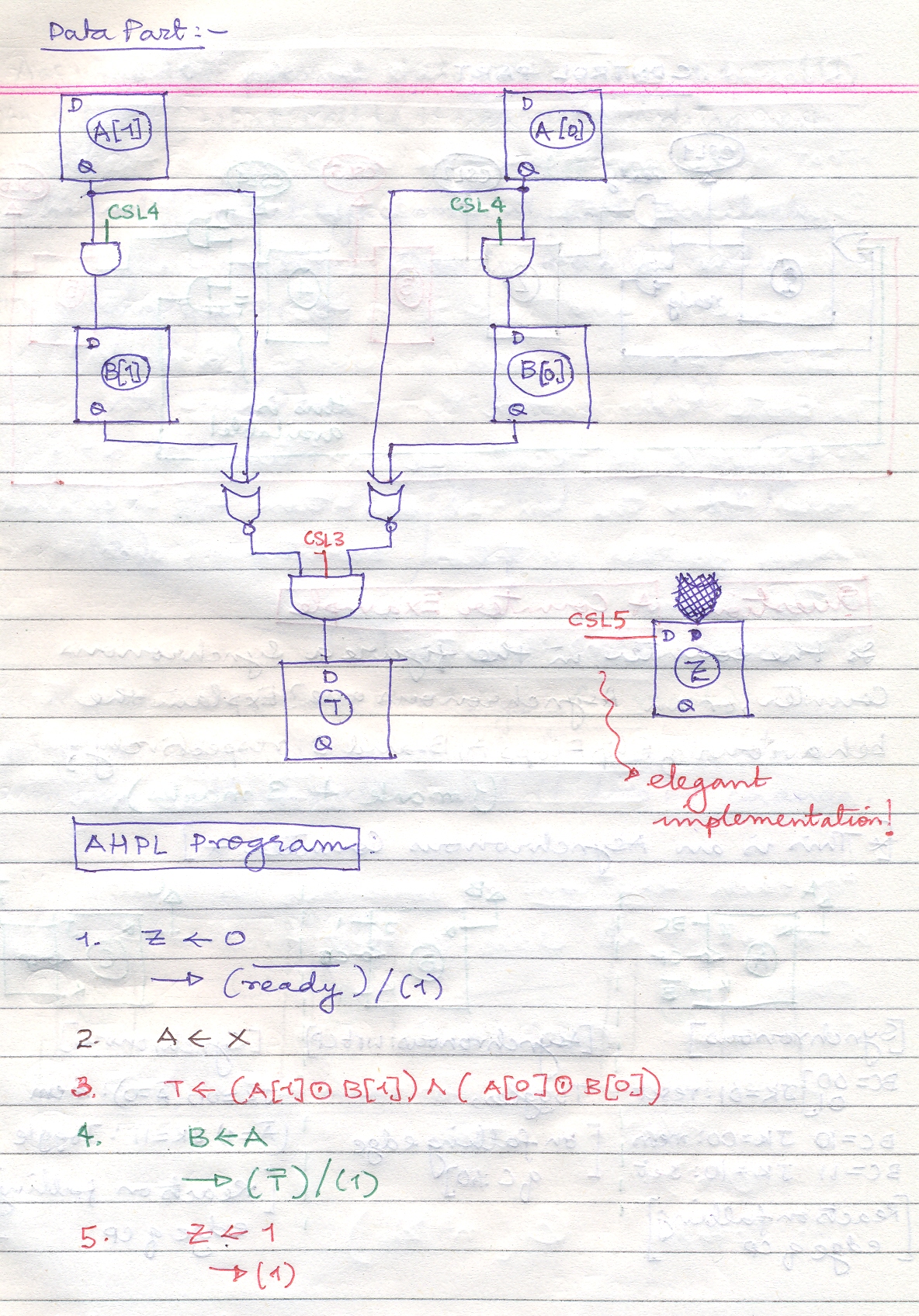

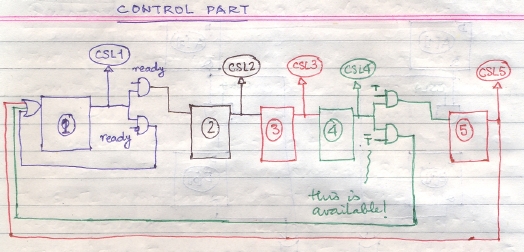

Question 4:

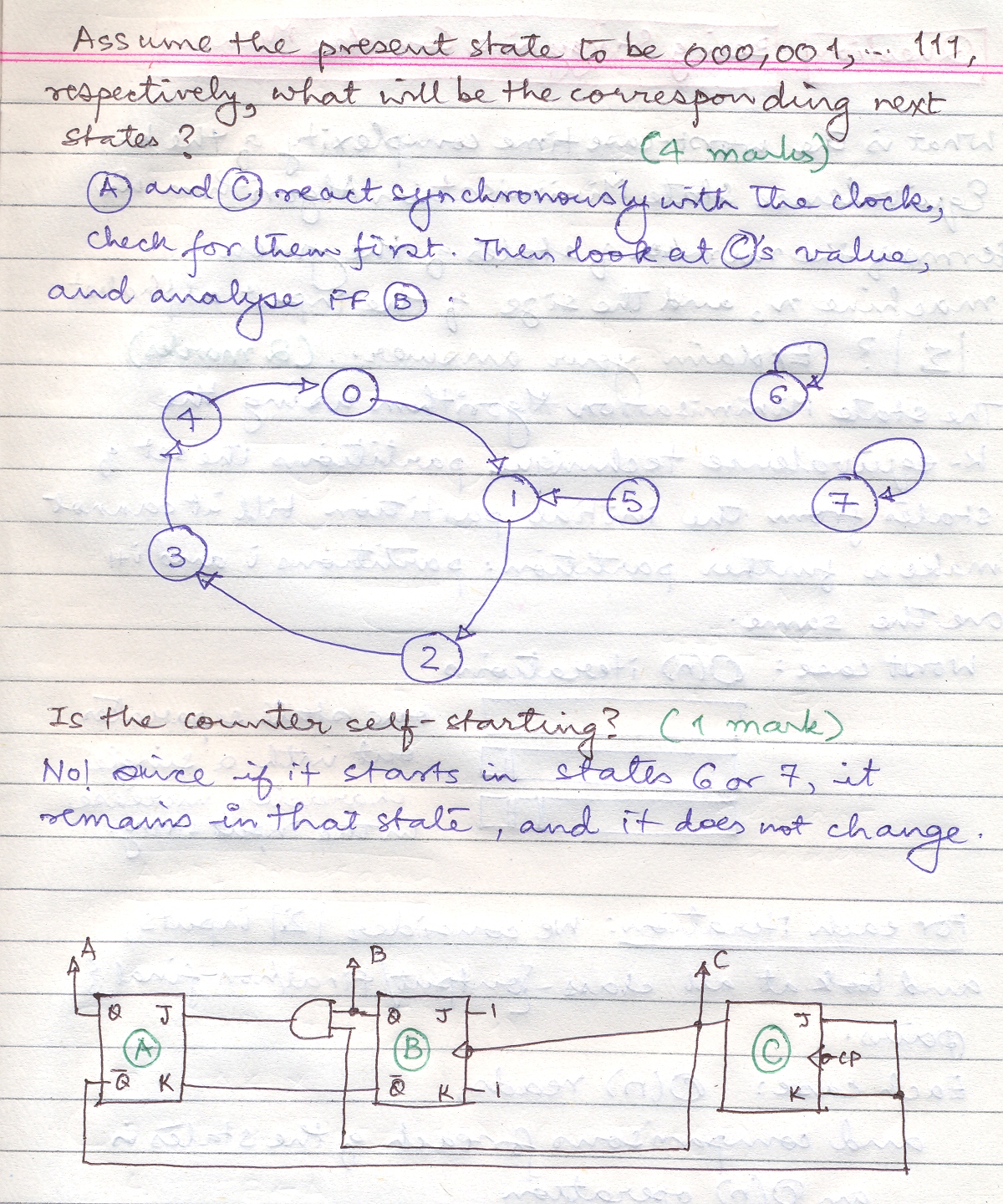

Question 5:

Question 6:

Sumantra Dutta Roy Department of Electrical Engineering, IIT Bombay, Powai,

Mumbai - 400 076, INDIA. sumantra@ee.iitb.ac.in
