EE206 Digital Circuits II Sem 2005-06: Mid-Semester Examination

Comments and Remarks (periodically updated)

Hints, Solutions and Notes (sporadically updated)

(Please click on the images below to see them clearly)

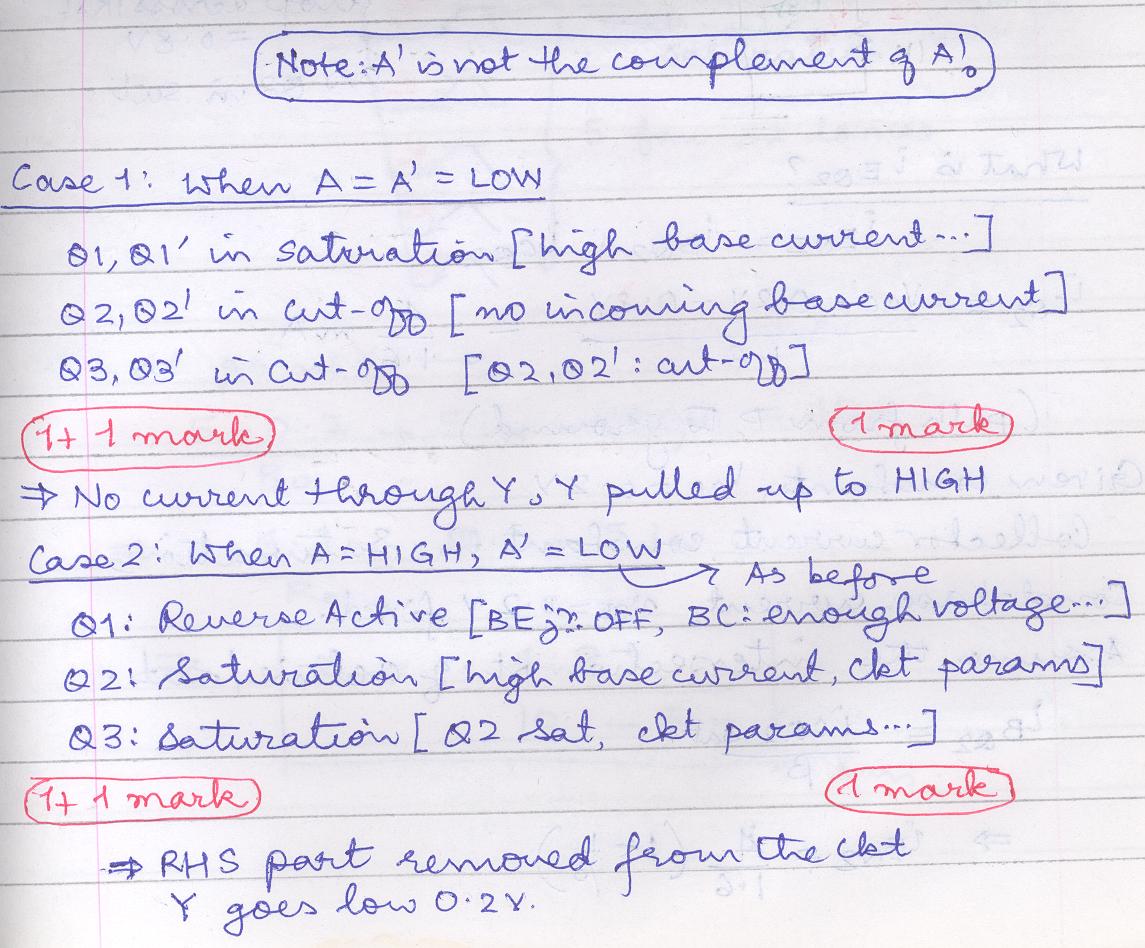

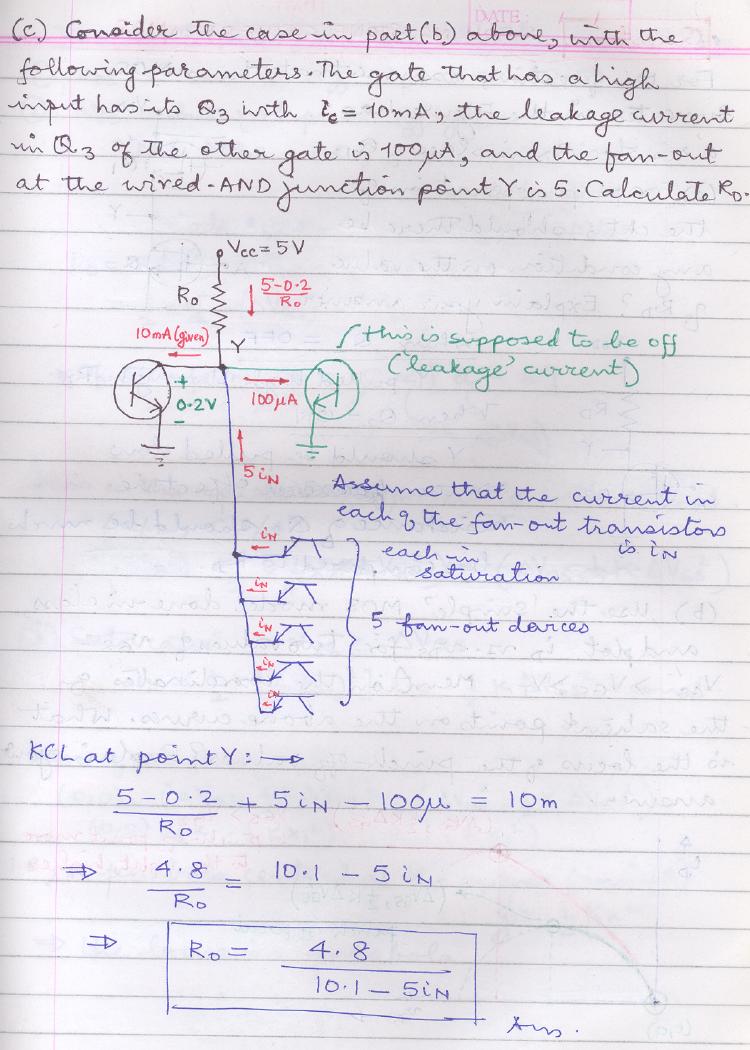

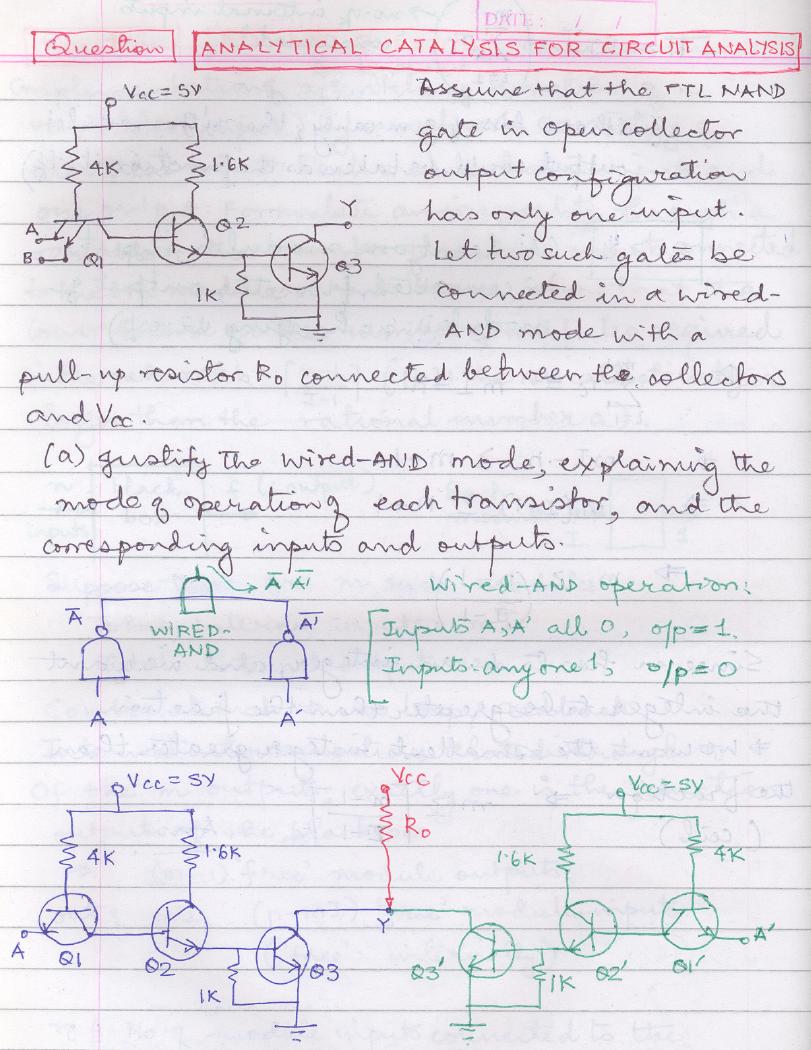

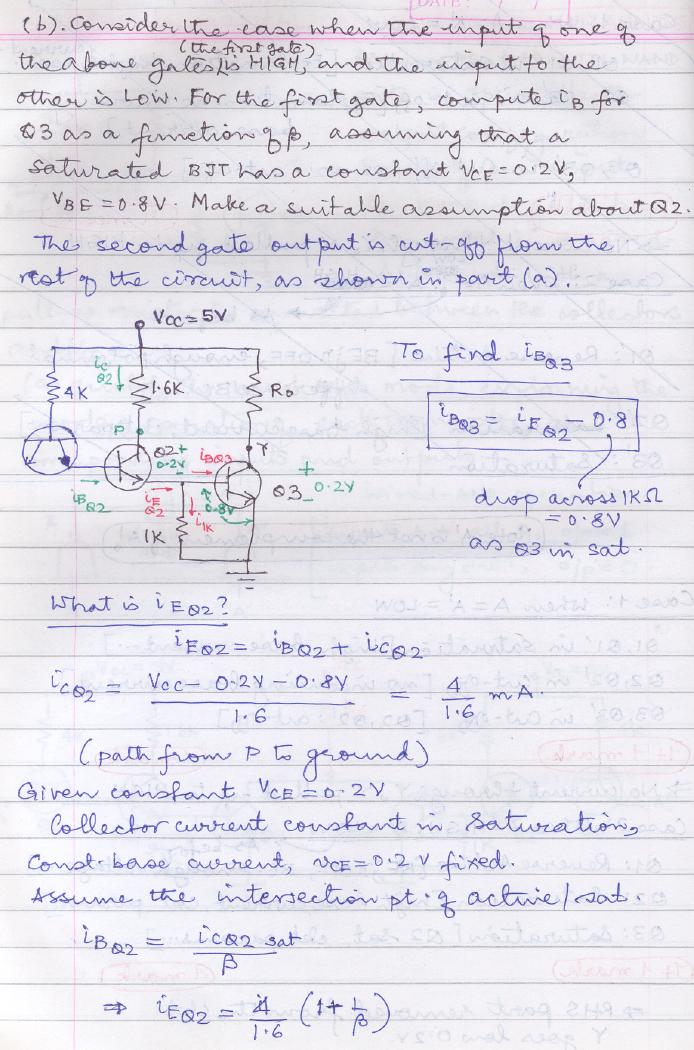

Question 1:

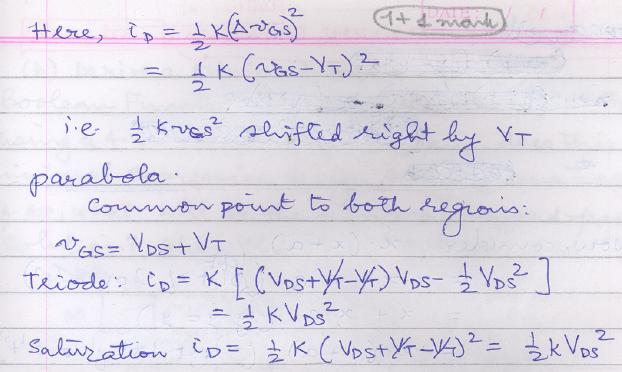

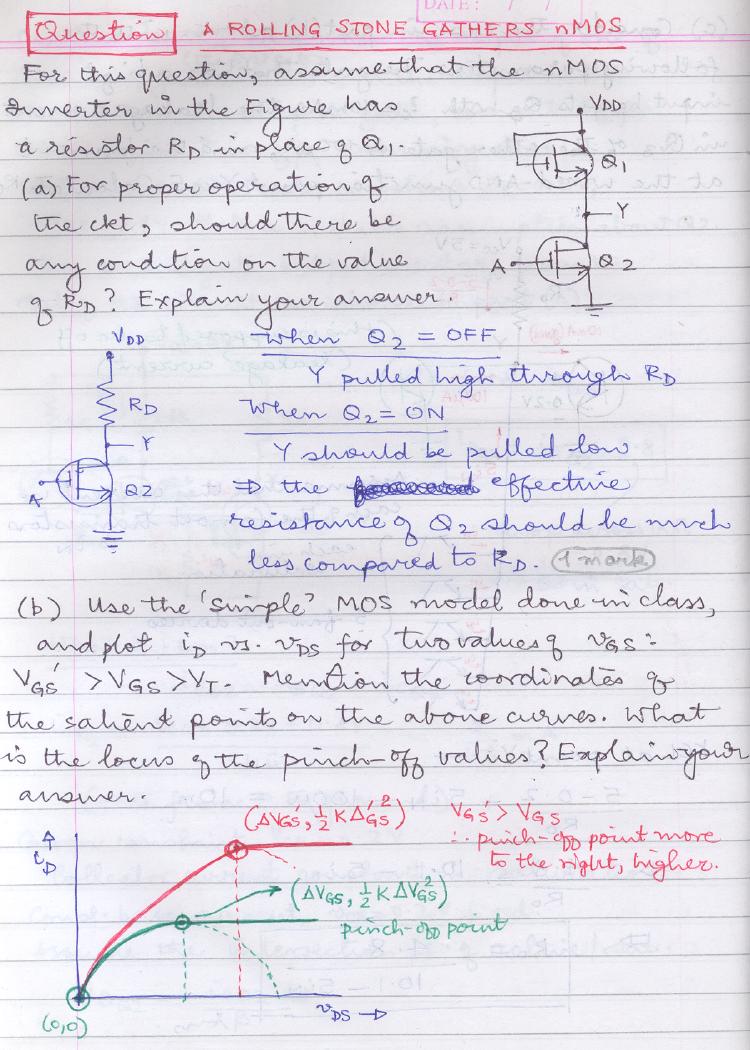

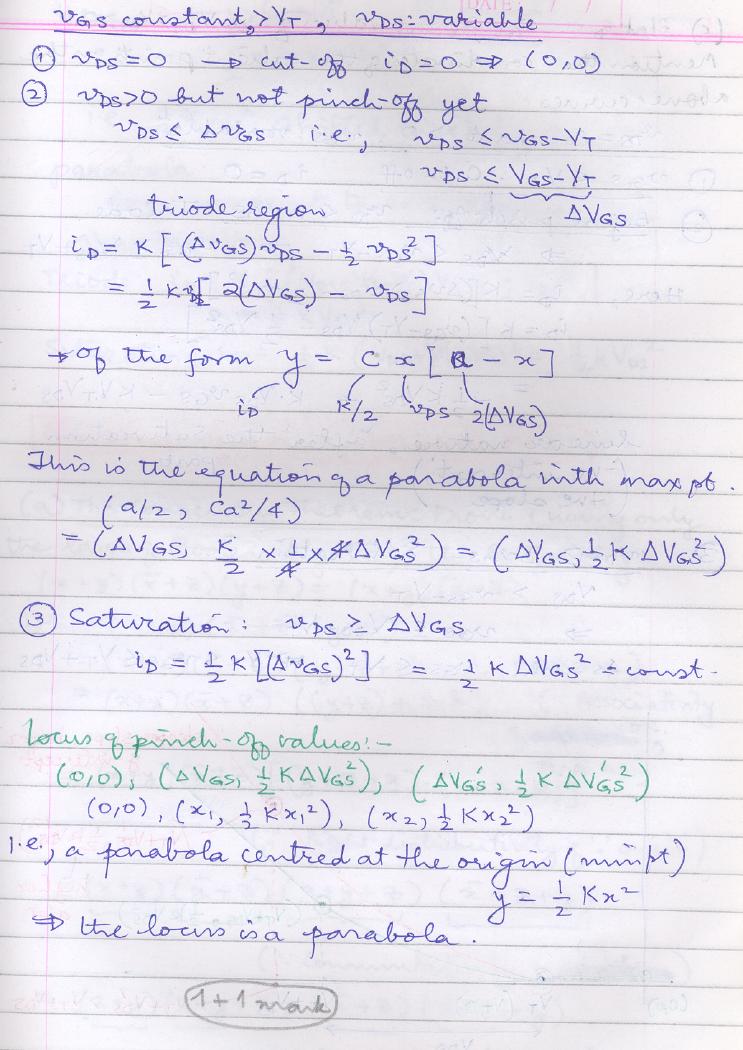

Question 2:

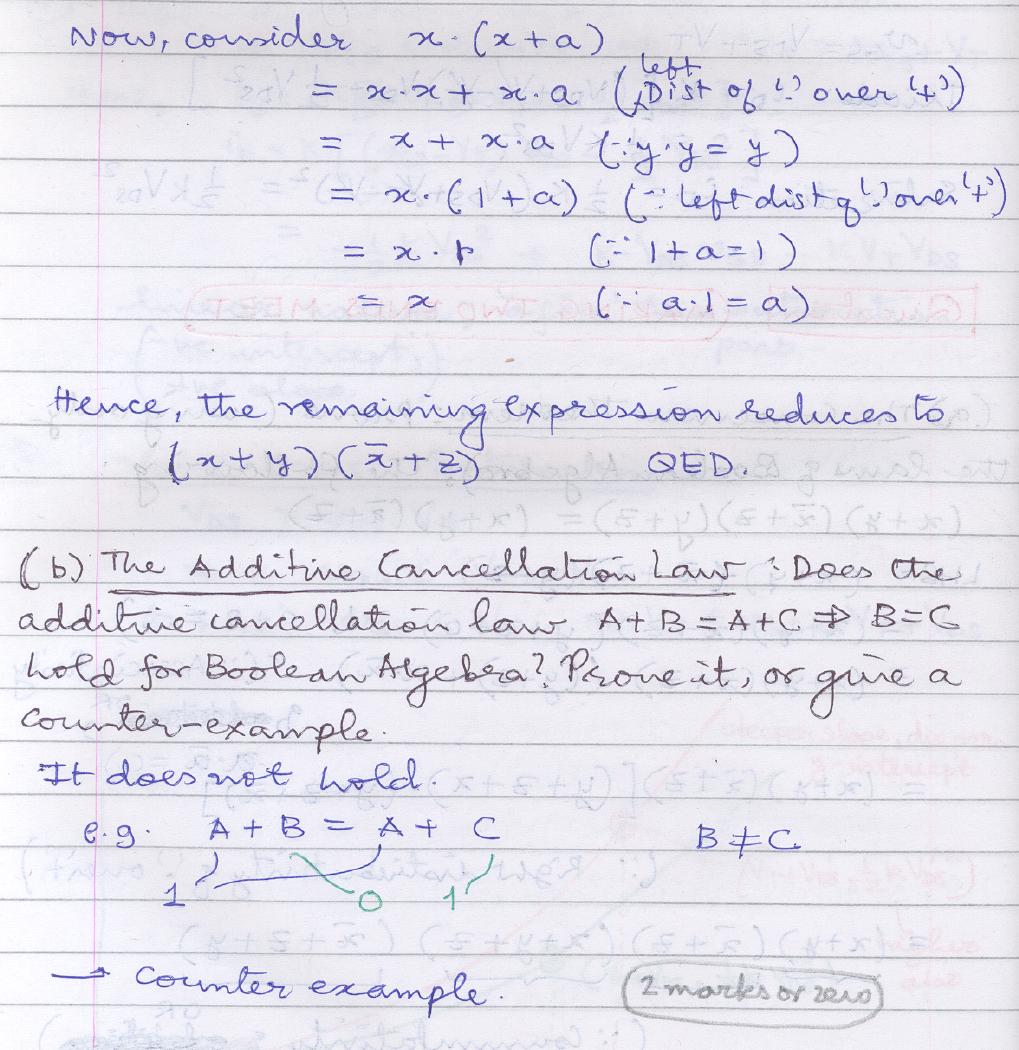

Question 3:


Question 4:

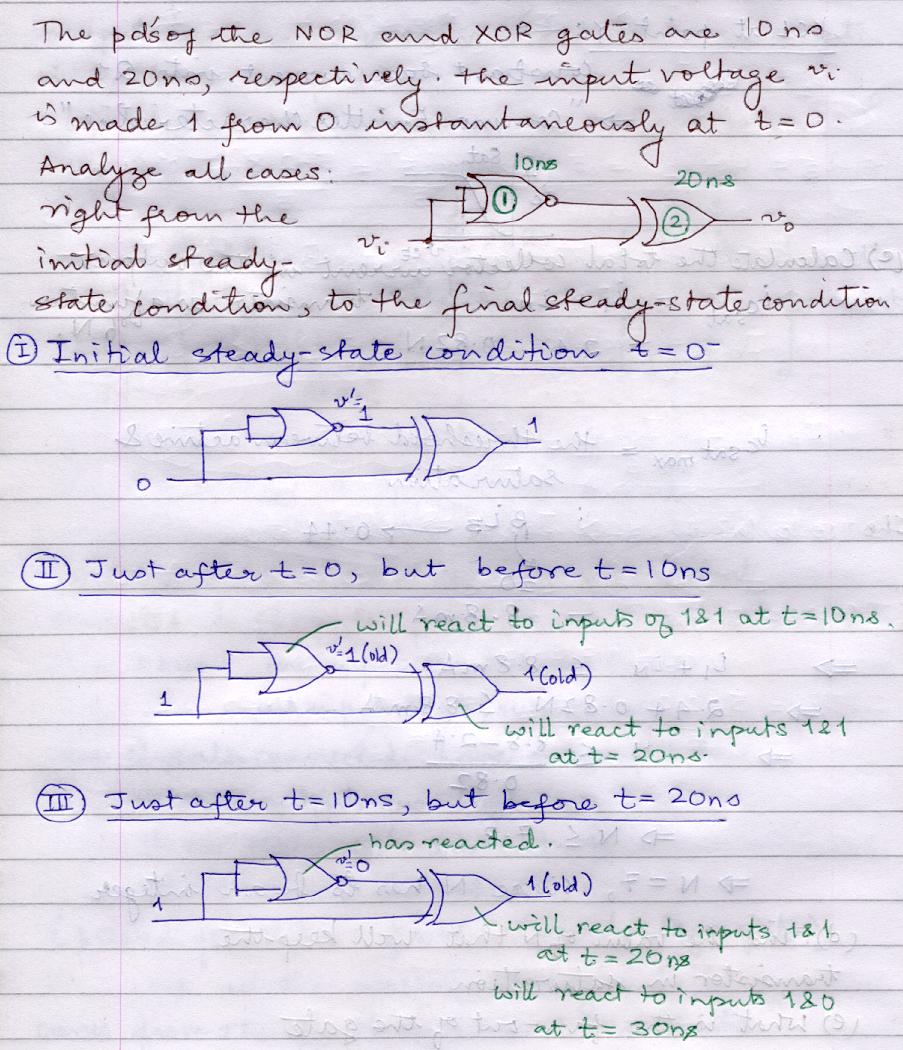

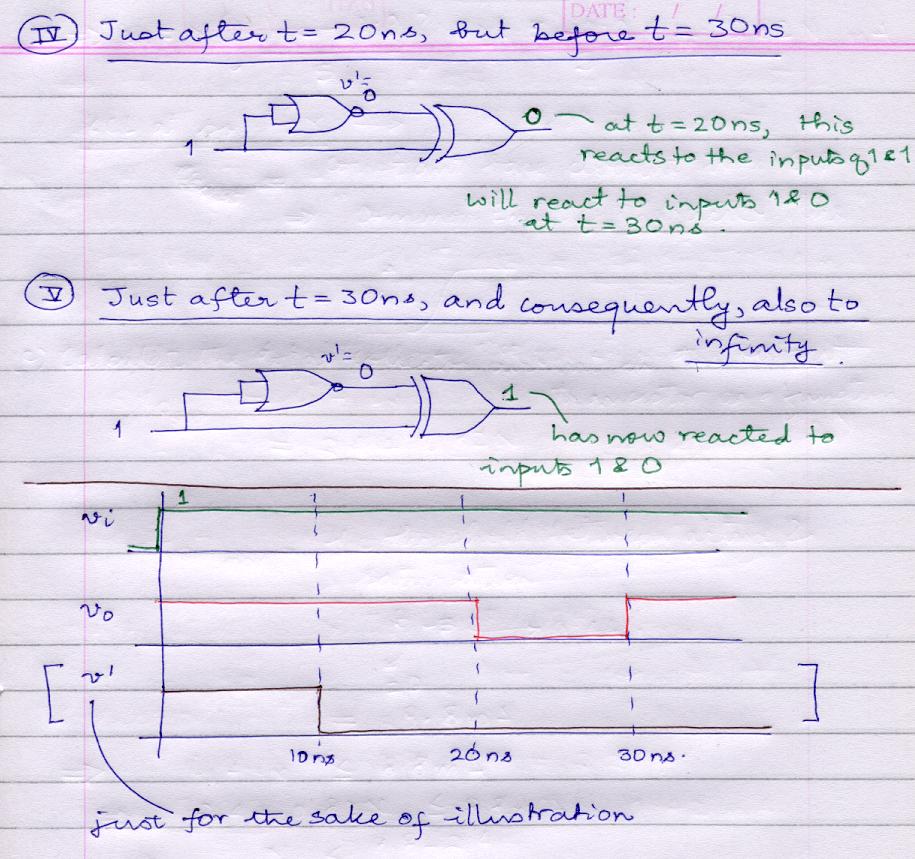

(a)

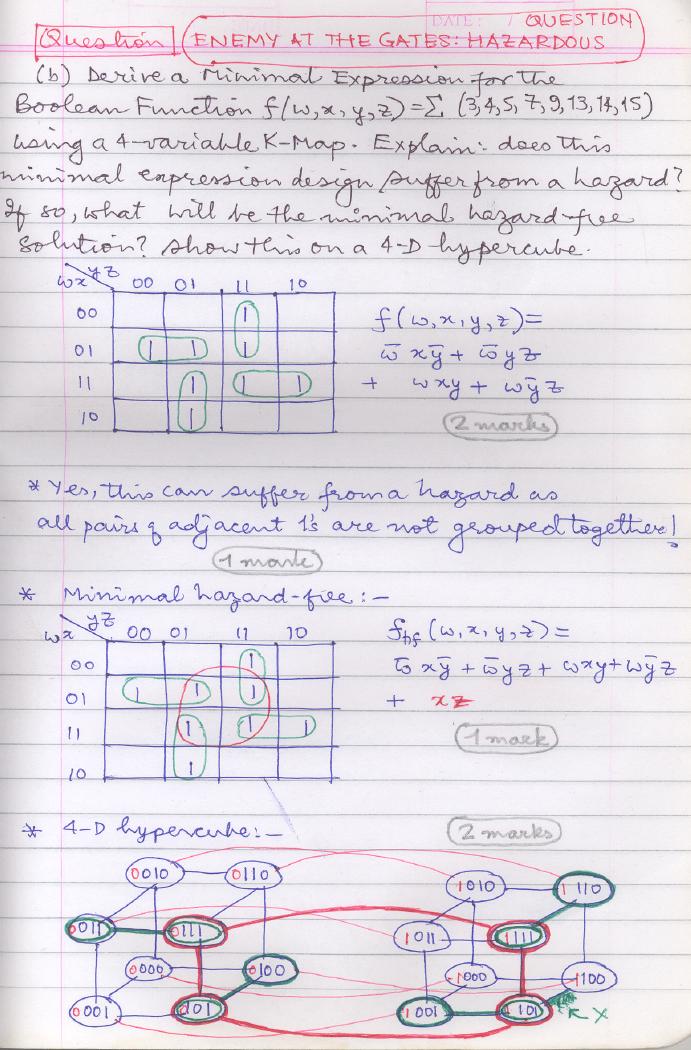

(b)

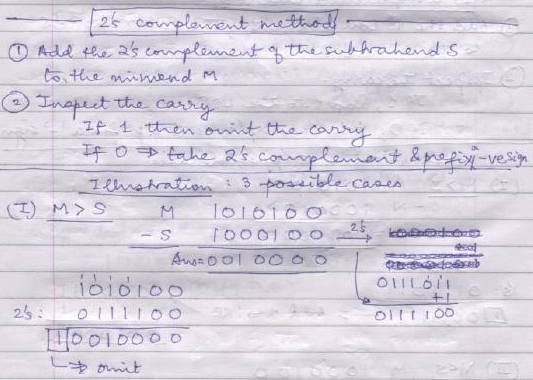

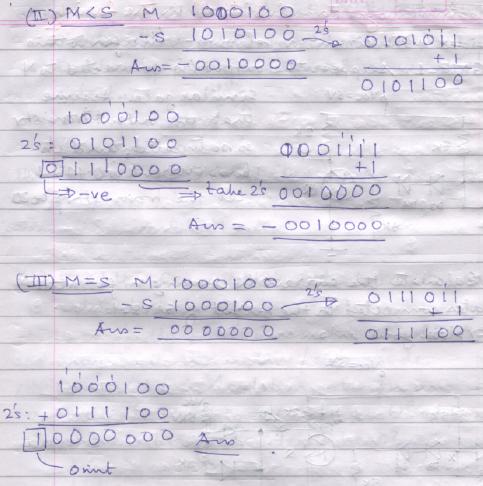

Question 5:
