Setup : phoenix

What can it do?

1. Room temperature 2, 3, 4 terminals IV.
2. Room temperature 2 terminals CV.
3. Stress Measurements/ Pulse Measurements.
4. Temperature dependent measurements

What it cannot do?

1. Frequency/Noise Measurements
2. Low Temperature Measurements

What instruments are present?

What are the current, voltage and frequency specifications?

How are instruments connected?

1. Two SMUs connected to switch matrix columns 1 (SMU1) & 2 (SMU2) respectively
2. SMU 3 is directly connected to Manipulator B
3. GNDU connected to switch matrix column 4
4. Manipulator A,C & D connected to switch matrix rows A,C & D respectively.
5. Chuck connected to Row G
6. LCR High connected to column 10
7. LCR Low connected to column 11
8. VPU channel 1 and OSC channel 1 is directly connected to the RBT.
9. VPU channel 2 connected to column 5
10. OSC channel 2 connected to column 6

Switch Matrix Connection

For example if you are doing a 2 terminal IV measurement by using SMU1, SMU2 and you have probed the sample by Manipulator A,C and you want to make the connection of SMU1 with A and SMU2 with C then it can be done by pressing the DOT corresponding to A1(Row A and Column 1) and C2(Row C and Column 2) with the help of light pen.

Setup Usage Instructions:

1. Login using your charlab domain username and password.
2. If you are first time user, then "Initialize New User", for this goto
   (Start → All Program → Keithley Instruments → Initialize new Users) and click ok.
3. Open KITE.

KITE Specific Instructions:

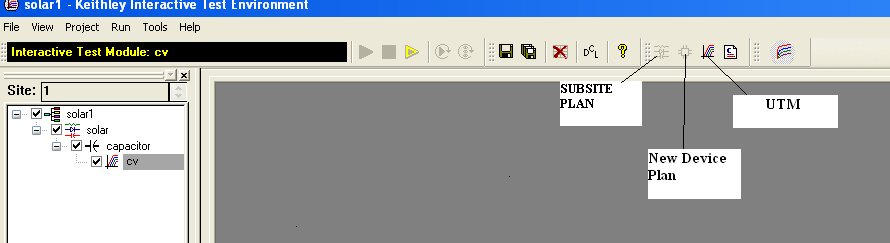

   Add the following

1. New Project
2. New Subsite Plan
3. New Device Plan
4. New ITM

FOR ADDING New project:
File → New project → Project name

FOR ADDING New Subsite Plan:
Click Subsite Plan → Give the name and press OK

FOR ADDING New Device Plan:
Click Device Plan → A window by name "ADD NEW DEVICE PLAN TO PROJECT" will appear → Select the Device Plan → Give the name and press OK

FOR ADDING New UTM Plan:
Click New UTM → Give the name and press OK
